System Overview

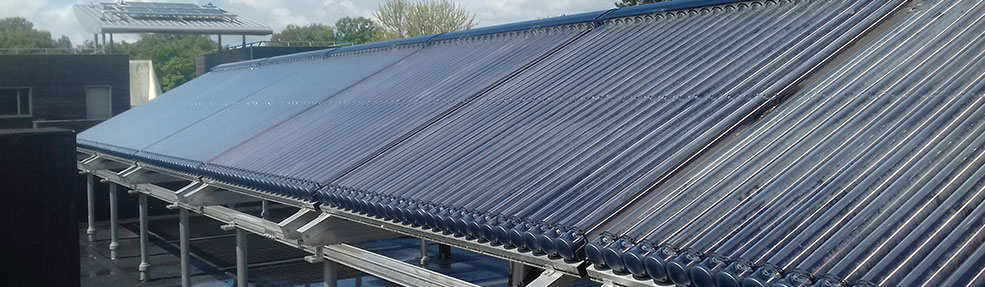

Helial D is a custom-made structure of supports adjustable in three axes for solar panels thermal or photovoltaic.
The system consists of:
The system consists of:
- Posts with platinum shoe D, mechanically fastened in the slab, supplied with a high platinum sleeve and a low platinum sleeve allowing the current sealing to be resumed above the insulation in accordance with DTU 43.1 and with an elastomeric collar forming A flashing which allows the top sealing to be terminated in accordance with DTU 20.12 (assembly dimensioned according to the Eurocodes.)
- Two beams of section 99x54 mm,
- Two triangular support structures per panel.
The system combines ease of implementation and transport.
The inclination varies according to the type of panels and the geographical area.
