• Aesthetically pleasing
• Quick and easy to install
• Recycled and recyclable aluminium
• Robust et durable
• Illuminated glass filling option







Obelyx is an aluminium balustrading system for roof terraces and balconies.

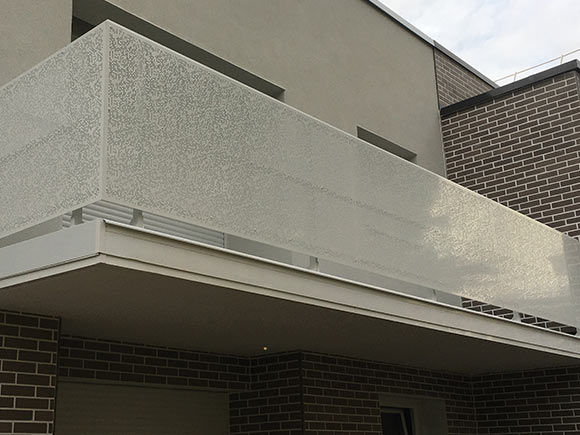

Will a full-height decorative infill that is situated in front of the posts, Obelyx gives facades a highly decorative finish in glass or sheet metal.



Ready to install:

• The fixing plates and the clap are delivered pre-assembled on the posts.
• The decorative infills are delivered ready to install.
• Fitting the decorative modules to the posts is quick and easy.







Powder coating for Obelyx is available in 350 different colors and textures.

For installations by the sea or in heavily polluted industrial areas, the system is available with a Qualicoat Seaside finish (available in all colors)



New! Illuminated glass filling option

The handrail can be fitted with LED lighting. When integrated in this way, the backlit balustrade produces illuminating effects on the facade, using either the colors of the glass or the perforations in the metal sheets .





Base plate

Fixing to slab, parapet or low wall

The 15 mm thin base plate features:

• 2 triangular holes for 2-way adjustment of M10 fixings (not supplied)
• 4 slots for special jack screws (supplied) to adjust the verticality of the post



1. Post
2. Base plate
3. Assembly screws for post and base plate
4. Jack screws
5. Base plate with attachment point for fillings
6. Fixing screw for fillings













Shoe D

The shoe D fixed to the slab through the waterproofing complex supports the guardrail on top of a concrete sill, in compliance with the waterproofing rules of DTU 2-.12 and DTU 43.1.



1. Shoe D
2. Support flange for sleeve gasket diam. 80
3. Cover cap
4. Aluminium coping 20/10
5. Base plate shoe D
6. Base plate Obelyx
7. Top sleeve gasket
8. Bottom sleeve gasket
9. Screws included



Separal ^®

Separal ^® is a divider for balconies and roof terraces. Delivered in customised sizes to meet contemporary architectural requirements, Separal is made from powder-coated aluminium in 350 colors and textures, with a choice of finishes on sheet metal, glass and HPL.



Separal ^® is delivered custom-tailored with the decorative filling of your choice:

• Glass panel (type 44.2) to diffuse light and save from prying eyes. The glass panel can be texturized (granited for instance) or decorated (adhesive film, silkscreen painting...).
• Decorative metal sheet , powder-coated in 350 different colors and textures.
• Composite panel (i.e. Trespa, Fundermax, etc.)
• New ! Separal ^® Vision series may also be used as a guardrail against falls from heights. Its compliance with standard P08-302 and with DTU 39 guarantees resistance.

Dallnet ^® slab nose finish

Dallnet ^® Slab nose finish provides a solution for the refurbishment of external elevations against frequently encountered problems: damage to balcony edges , exposed reinforcement, rust, cracking, leakage, water staining, dirt, etc. The combination of an upper profile and a lower profile allows the system to be adjusted to different slab thicknesses.

Dallnet ^® Slab nose finish is available in 350 colors and textures of powder-coating.

• Adjustable aluminium cladding system to protect balcony edges
• High quality extruded system
• Useful in new builds as well as refurbishment projects
• Pre-fabricated accessories on premises (angles, junctions, nozzles)
• Adjustable system, adapting to slabs of various heights
• Invisible fixings
